Introductions

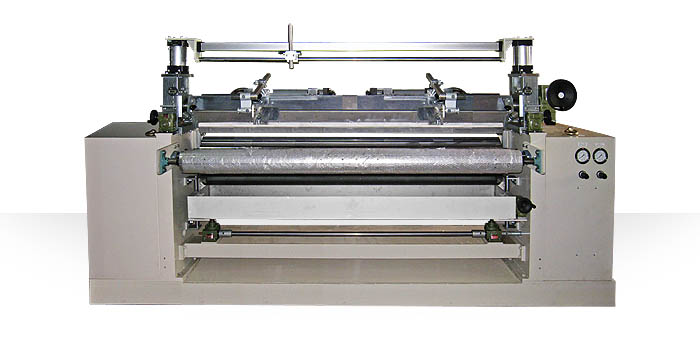

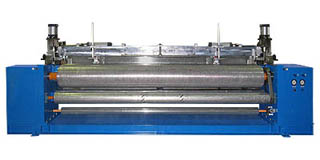

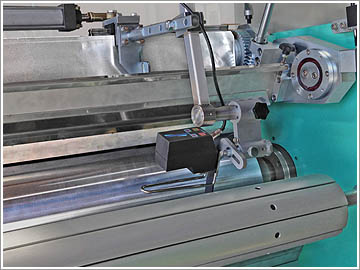

Blade coating machine uses roller to transfer adhesive on the surface of cloth fabric, using blade to scrape adhesive and let it be spread evenly and control coating thickness to achieve perfect surface of adhesive on the cloth fabric.

Model

CA-165



CA-200

CA-260



CA-320

CA-360


Specifications

Model No.

CA-165

CA-200

CA-260

CA-320

CA-360

Roll Width (mm)

1,650

2,000

2,600

3,200

3,600

Cloth fabric width (mm)

1,550

1,900

2,500

3,100

3,500

Production speed (M/mim)

3~50 M/min

Dimension
L * W * H (mm)

3,000
* 800
* 1,350

3,500
* 900
*1,750

4,200
* 900
* 1,850

4,800
* 900
* 1,850

5,200
* 900
* 1,900

Weight (Kg) 4,000 Kg 5,000 Kg 7,000 Kg 9,000 Kg 10,000 Kg

Power

3φ , 220 / 380V , 50 / 60 Hz

Air pressure

6Kg / c㎡

Machine's color selection

The machine's color could be assigned by customer, or assigned by the following popular color cards.


01
02
03
04
05
06
